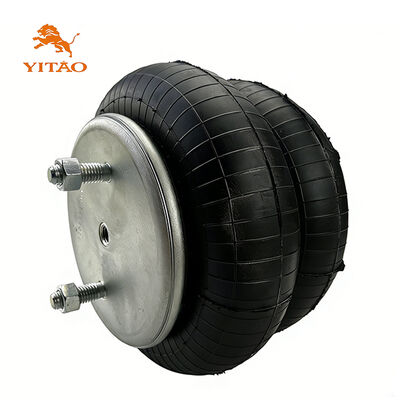

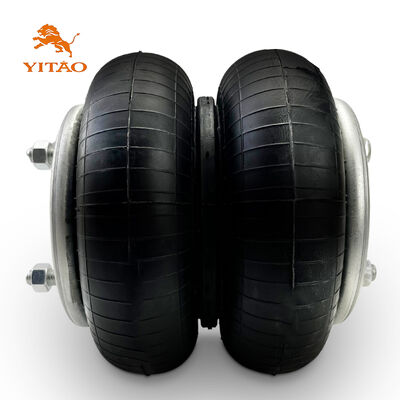

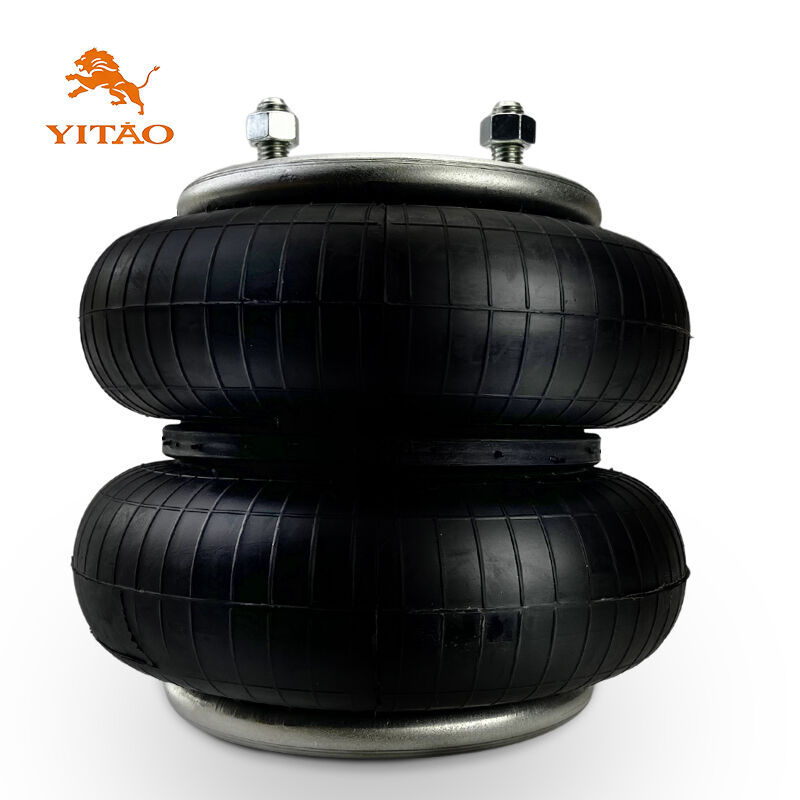

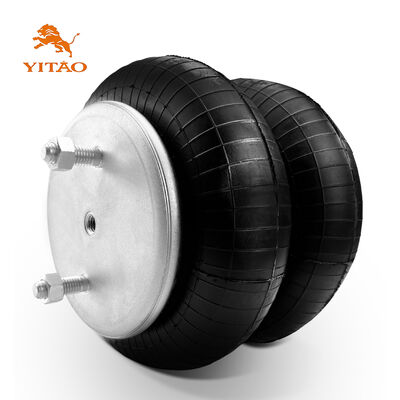

Firestone W01-358-6941 Goodyear 2B9-265 Double Convoluted Air Spring

Firestone W01-358-6941 Goodyear 2B9-265 Double Convoluted Air Spring
Firestone W01-358-6941 Goodyear 2B9-265 Double Convoluted Air Spring Firestone W01-358-6941 Goodyear 2B9-265 Double Convoluted Air Spring Firestone W01-358-6941 Goodyear 2B9-265 Double Convoluted Air Spring Firestone W01-358-6941 Goodyear 2B9-265 Double Convoluted Air Spring

Ampliación de imagen :  Firestone W01-358-6941 Goodyear 2B9-265 Double Convoluted Air Spring

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: YITAO
Certificación: IATF16949
Número de modelo: 2B 5253/02B 200
Pago y Envío Términos:
Cantidad de orden mínima: 50 piezas
Precio: Negotiable in person
Detalles de empaquetado: Caja de cartón
Tiempo de entrega: 1 ~ 30 días
Condiciones de pago: T/T
Capacidad de la fuente: 5000 piezas/mes
Contacto

Firestone W01-358-6941 Goodyear 2B9-265 Double Convoluted Air Spring

descripción
Número de equipo original: W01-358-6941,FD200-19448,161295,2B9-265,280,578923202,6,6325,4448,10302,57006941 Número YITAO: 2B 5253
Tiempo de envío: 3-10 días Garantía: 12 meses
Tipo: resorte neumático, resorte de suspensión Material principal: El caucho y el metal
embalaje: Embalaje neutral o embalaje personalizado
Resaltar:

Firestone double convoluted air spring

,

Goodyear 2B9-265 air ride spring

,

heavy-duty air suspension spring

Firestone W01-358-6941 Goodyear 2B9-265 Double Convoluted Air Spring
High-quality double convoluted air spring designed for optimal performance and durability in industrial applications.
OE Manufacturer Numbers
  • W01-358-6941
  • FD200-19448
  • 161295
  • 2B9-265
  • 280
  • 578923202
  • 6,6325
  • 4448
  • 0302
  • 57006941
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-6941 W013586941 / W01-358-6941 / W01 358 6941
Contitech FD200-19448 FD20019448 / FD200-19448 / FD200 19448
Contitech 161295 :161295
Goodyear 2B9-265 2B9265 / 2B9-265 / 2B9 265
Goodyear 280 :280
Goodyear 578923202 :578923202
Triangle 6325 :6325
Triangle 4448 :4448
Histeer 10302 :10302
SAF Holland 57006941 :57006941
Technical Specifications
Specifications Parameters
Outer diameter φ224
Weight /
Net weight 2.421kg
Package Dimensions 25*25*25.5cm
Natural height 210mm
Maximum height 78mm
Minimum height 260mm
Extended Height 274mm
Compressed Height 81mm
Top Plate Width 160mm
Piston Width 160mm
Product Drawings & Images
Firestone W01-358-6941 Goodyear 2B9-265 Double Convoluted Air Spring 0
Firestone W01-358-6941 Goodyear 2B9-265 Double Convoluted Air Spring 1
Factory Overlook
Firestone W01-358-6941 Goodyear 2B9-265 Double Convoluted Air Spring 2
Quality Control Inspection
Firestone W01-358-6941 Goodyear 2B9-265 Double Convoluted Air Spring 3
Manufacturing Equipment
Firestone W01-358-6941 Goodyear 2B9-265 Double Convoluted Air Spring 4
R&D Center
Firestone W01-358-6941 Goodyear 2B9-265 Double Convoluted Air Spring 5
Assembly and Forming
Firestone W01-358-6941 Goodyear 2B9-265 Double Convoluted Air Spring 6
Vulcanization Shop
Images shown are for reference only. Actual product may vary slightly.
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
